Ford Bronco full instrument cluster

Ford Bronco HMI

HMI Design

Fantasy

Design Director: Michael Glass

Ford Bronco HMI Details

The Ford Bronco introduces a state-of-the-art interface across its 8 or 12 inch displays, showcasing dynamic animations and a neumorphic design style that aligns with the vehicle's adventurous ethos. As drivers toggle between drive modes, they're greeted with engaging animations that depict various terrains and skies, transitioning seamlessly from one driver mode to the next, at the same time, the colors of the digital speedometer and rev counter adjust to match the selected mode and manage to remain legible at a glance ensuring a fully immersive experience. This innovative approach, blending modern design with intuitive functionality, not only reflects the Bronco's adventurous spirit but also sets a new standard for car interface design.

The Bronco’s cleverly shoe horned acronym for driver modes -  G.O.A.T (Goes over any type of Terrain)

Sport Mode: Cranks up the excitement with snappier throttle responses, making highway jaunts almost as thrilling as the off-road escapades.

Eco Mode: For the eco-conscious adventurer, tweaking engine settings to sip fuel gently, ensuring you reach the trails with plenty to spare.

Normal Mode: The daily driver's dream, striking a harmonious balance between zest and sensibility, ready for whatever the day throws your way.

Slippery Mode: Tailored for those less-than-perfect road conditions, dialling back the throttle and fine-tuning for a steadier grip on the slippery stuff.

Sand/Snow Mode: Unfazed by the elements, it locks in four-wheel drive, ensuring you stay the master of sandy shores or snowy streets.

Mud/Ruts Mode: Dives into the muck with four-wheel drive lock, letting you power through with just the right amount of finesse.

RockCrawl Mode: Elevates the off-road game, locking in the drivetrain and lighting up the path ahead with the front trail cam, making boulders bow down.

Baja Mode: Unleashes the desert racer within, with throttle tuning that's all about rapid responses and sustained power for the wild ride.

Tow-Haul Mode: Transforms towing into a breeze, optimizing gear shifts and employing engine braking to keep heavy hauls under control on descents.

Off-Road Mode: The jack-of-all-terrains, tweaking everything for an all-encompassing off-road prowess that's ready to tackle the untamed.

HMI Gallery

Ford Bronco full instrument cluster
Ford Bronco driver interface
Ford Bronco interface showing the compass gauge
Ford Bronco interface showing the off road status
Ford Bronco interface showing the seat belt monitor
Ford Bronco driver interface - night mode
Ford Bronco interface showing the pitch and roll gauges
Ford Bronco interface in rock crawl mode
Ford Bronco interface in normal mode
Ford Bronco interface in sport mode
Ford Bronco interface in baja mode
Ford Bronco interface in slippery mode

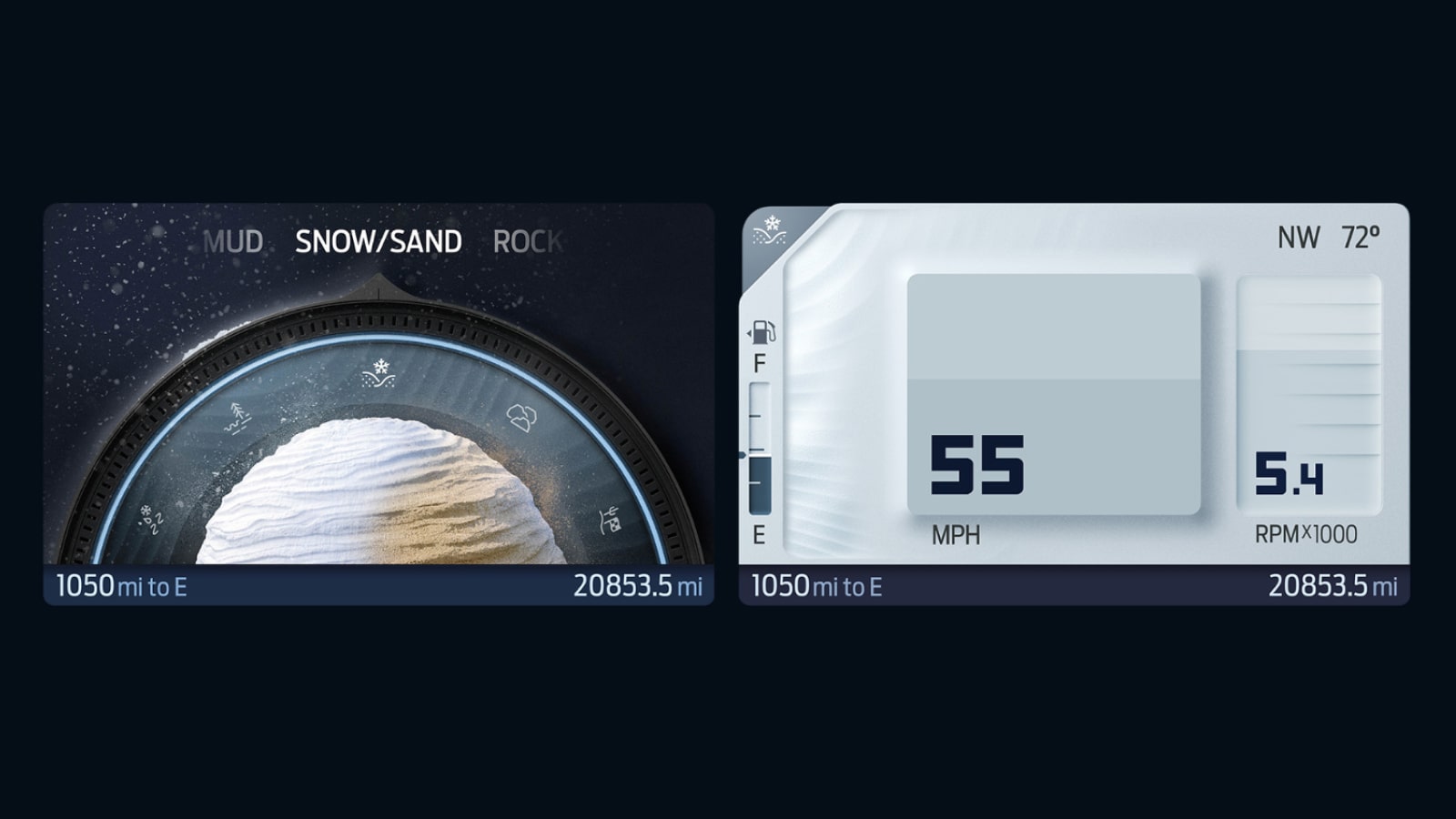

Ford Bronco interface in snow and sand mode
Ford Bronco interface in eco mode
Ford Bronco interface individual gauges and status

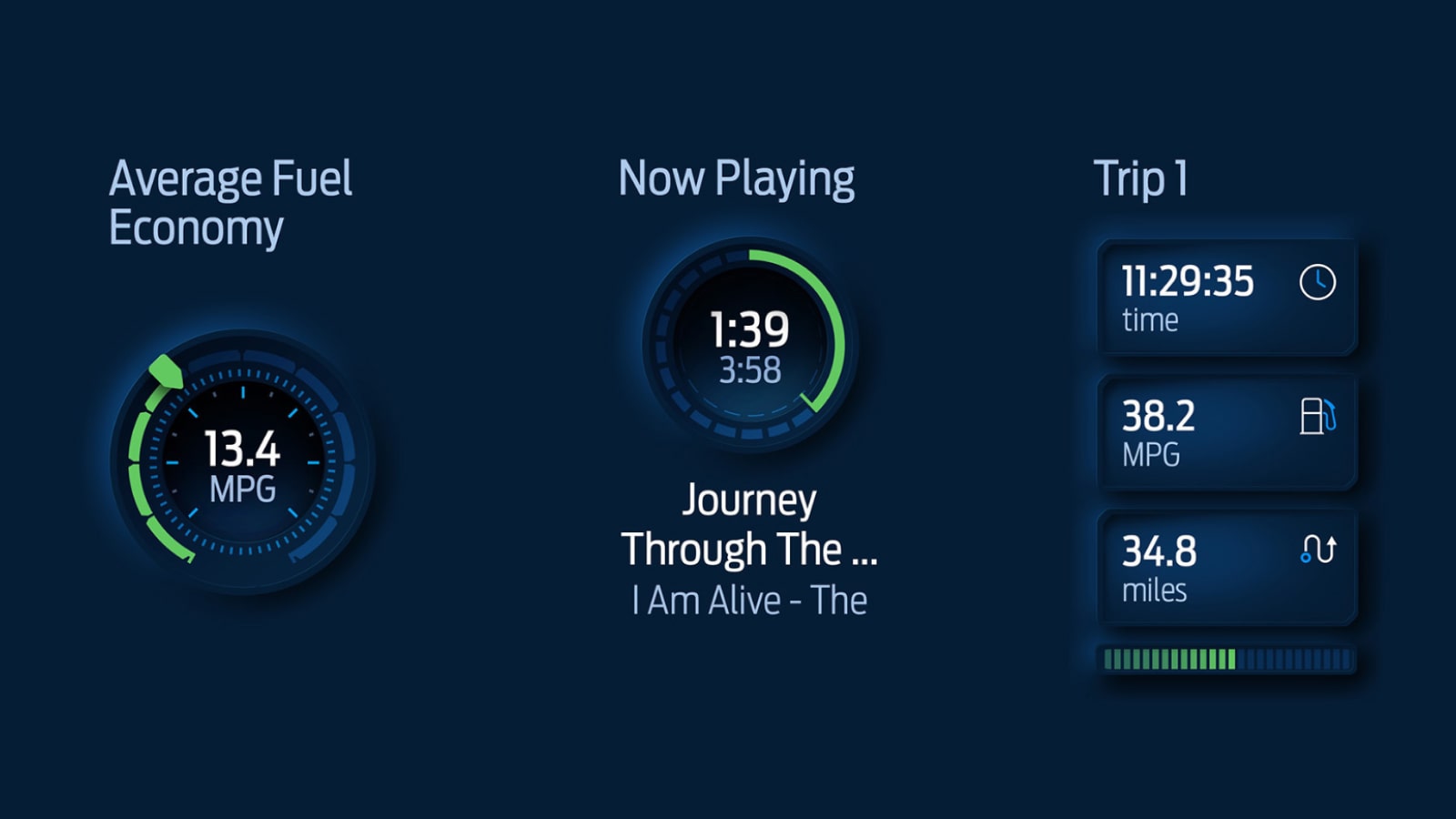

Ford Bronco interface individual gauges
Ford Bronco interface gauges - pitch and roll
Ford Bronco interface navigation graphics
ford-bronco-goat-modes
ford-bronco-dashboard-switches
Ford Bronco interface in situ showing rock crawl interface
Ford Bronco interface in situ showing slippery interface
Ford Bronco interface in situ showing of road status
Ford Bronco Interior
Ford Bronco climbing over rocks

Image source: media.ford.com
